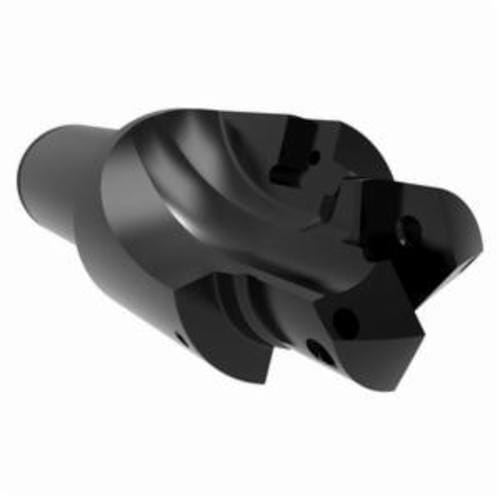

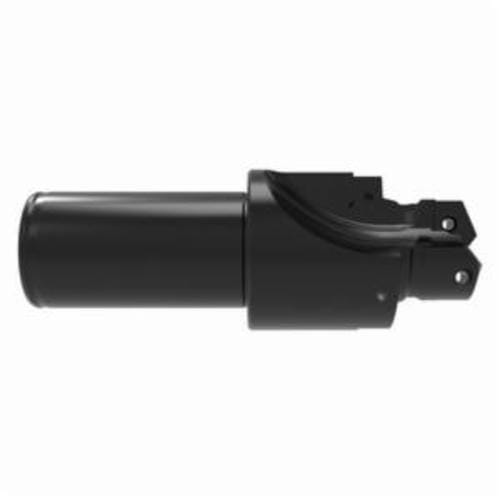

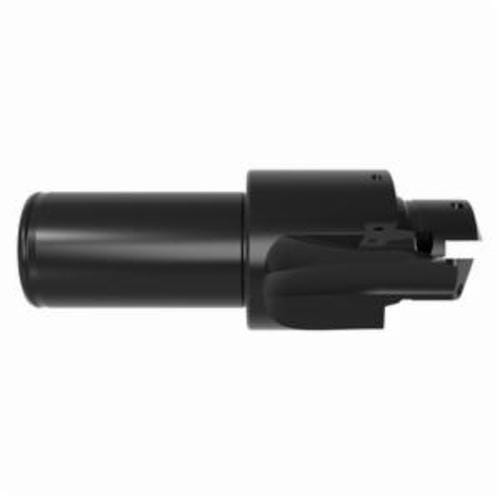

Allied Machine & Engineering AccuPort 432® J1926-122-125F 2 Series Port Contour Cutter, SAE J-1926-1/ISO 11926-1/MS-16142, 0.984 in Dia Pilot, J1926-08 Insert, 1-1/16-12 UN-2B Thread
Allied Machine & Engineering AccuPort 432® Port Contour Cutter, Series: 2 Series, Port Standard Designation: SAE J-1926-1/ISO 11926-1/MS-16142, 1-1/16-12 UN-2B, J1926-08 Insert, 2 Inserts, Tube Dash Number: -12, 15 deg Porting Angle, 1.655 in Spot Face Dia, 0.984 in Pilot Dia, 0.906 in Pilot Length, 1-1/4 in Shank Dia, 2.281 in Shank Length, 4.921 in Overall Length, Hardened Tool Steel
Allied Machine & Engineering AccuPort 432® Port Contour Cutter, Series: 2 Series, Port Standard Designation: SAE J-1926-1/ISO 11926-1/MS-16142, 1-1/16-12 UN-2B, J1926-08 Insert, 2 Inserts, Tube Dash Number: -12, 15 deg Porting Angle, 1.655 in Spot Face Dia, 0.984 in Pilot Dia, 0.906 in Pilot Length, 1-1/4 in Shank Dia, 2.281 in Shank Length, 4.921 in Overall Length, Hardened Tool Steel
Allied Machine & Engineering
United States
Allied's AccuPort 432® Port Contour Cutters are produced to strict manufacturing tolerances. This provides the customer with the assurance that the forms produced are within the finish tolerances of each specification. This innovative hydraulic port cutter uses high performance T-A® insert technology to deliver outstanding results, accuracy and productivity without the need for pilot drilling, which significantly reduces operation time and costs.
