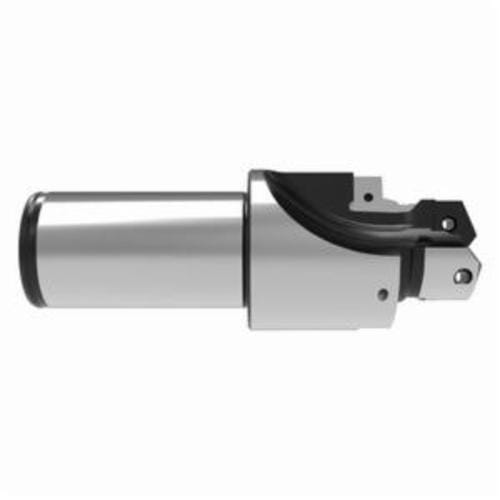

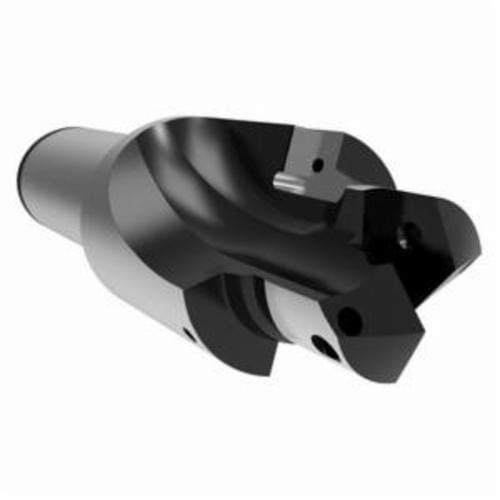

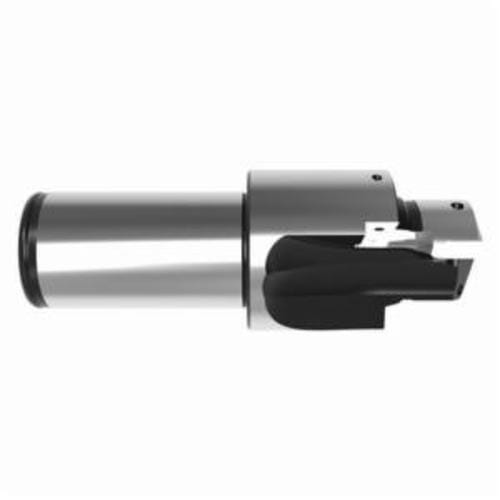

Allied Machine & Engineering AccuPort 432® G1731-122-32FM 2 Series Port Contour Cutter, JDS-G173.1, 0.984 in Dia Pilot, M27x2 Thread
Allied Machine & Engineering AccuPort 432® Port Contour Cutter, Series: 2 Series, Port Standard Designation: JDS-G173.1, M27x2 Thread, Tube Dash Number: -12, 15 deg Porting Angle, 1.614 in Spot Face Diameter, 0.984 in Pilot Diameter, 1.063 in Pilot Length, 1.26 in Shank Diameter, 2.28 in Shank Length, 5.1 in Overall Length
Allied Machine & Engineering AccuPort 432® Port Contour Cutter, Series: 2 Series, Port Standard Designation: JDS-G173.1, M27x2 Thread, Tube Dash Number: -12, 15 deg Porting Angle, 1.614 in Spot Face Diameter, 0.984 in Pilot Diameter, 1.063 in Pilot Length, 1.26 in Shank Diameter, 2.28 in Shank Length, 5.1 in Overall Length
Allied Machine & Engineering
United States
Allied's AccuPort 432® Port Contour Cutters are produced to strict manufacturing tolerances. This provides the customer with the assurance that the forms produced are within the finish tolerances of each specification. This innovative hydraulic port cutter uses high performance T-A® insert technology to deliver outstanding results, accuracy and productivity without the need for pilot drilling, which significantly reduces operation time and costs.
